Description
Don’t be fooled by this e-bike’s name, the Commute EX is just at home on those picturesque country trails as it is on the streets! Big tyres ensure a comfy ride, and a more upright position eases stress points on those long weekend jaunts, made so much easier by the large 400Wh Samsung powered battery.
Specification

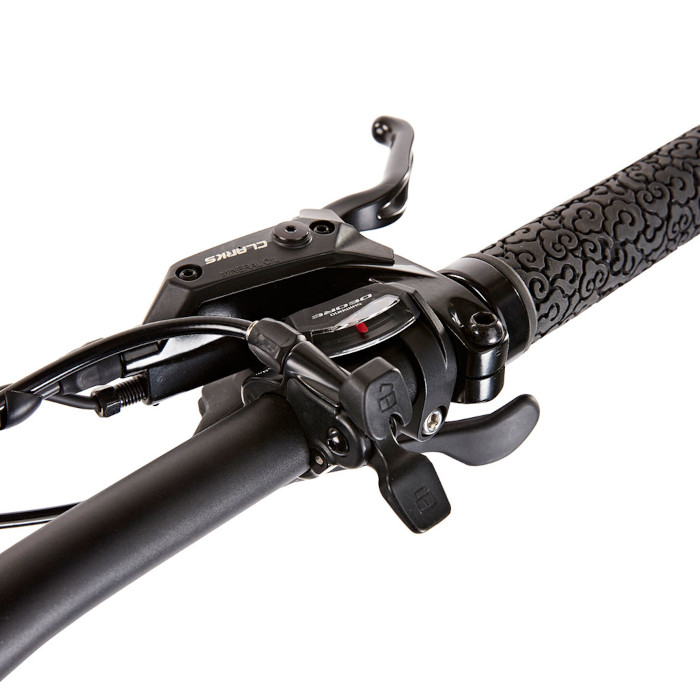

ELECTRICMotor: 250W 36V rear hub brushless gear drive Torque: 45Nm regulated to 15.5 mph Battery: Removable 418Wh (11.6Ah) 36v with SAMSUNG cells Range: 40 miles (60km) based on average conditions Controller: 540Wh (15Ah) 36v Sensor: 12 magnetic point speed sensor Display: 5 mode LCD module with walk assist Charger: 2Ah 36v smart charger - 4h charge time Cable: Waterproof IP67 with quick connectors FramesetFrame: Alloy with internal cables and battery Fork: RST Alpha, 120mm travel, thru-axle, remote lockout Sizes: 17” / 19” DrivetrainShifters: Shimano ALTUS Rapidfire Plus Rear Mech: Shimano ACERA 9 Speed Cassette: Shimano 11-36 tooth ChainChainset: Alloy 40 tooth 175mmPedals: Alloy BB: Sealed cartridge Chain: KMC X9 anti-rust BrakesCalipers: Clarks hydraulic disc brakes Levers: Alloy 2 finger with safety power cut-off Rotors: 180mm front & 160mm rear | |
Wheels
Tyres: WTB Ranger Comp 27.5” x 2.25”
Tubes: High pressure Presta valve
Rims: Alloy double wall 36 hole
Front Hub: Alloy thru axle with sealed bearings
Spokes: Stainless with brass nipples - 13G front / 12G rear
Components
Saddle: WTB Rocket Comp
Seat Post: Alloy dual adjust 350mm
Handlebar: Alloy 780mm - 31.8 bar bore
Stem: Alloy 50mm
Grips: Velo double density MTB with lockrings
Headset: Alloy semi-integrated with 3 spacers
Weight
Battery: 3.5kgs
E-bike: 17.5kgs
Total: 21kgs
